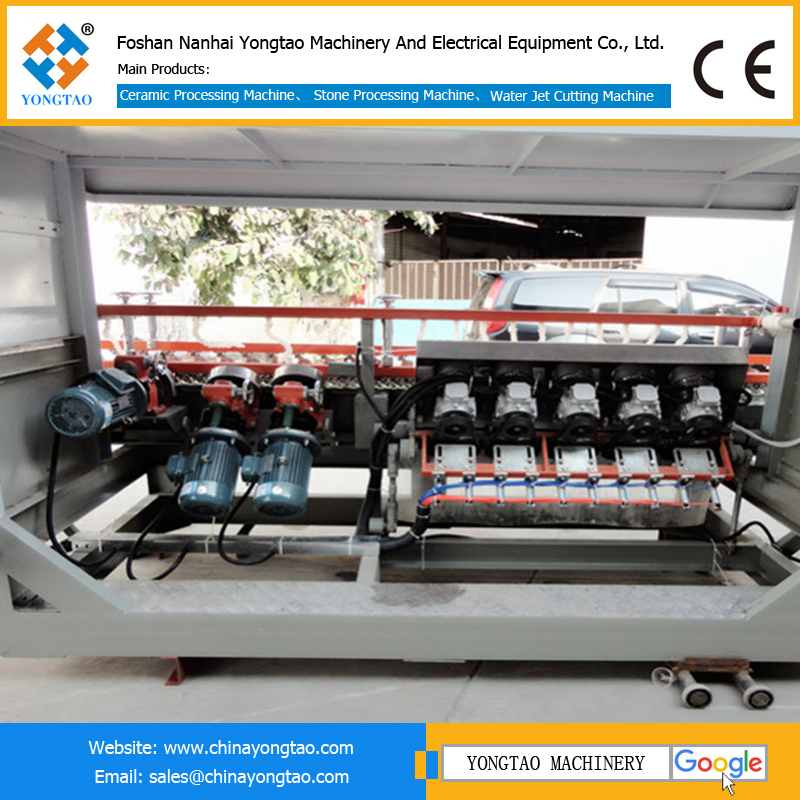

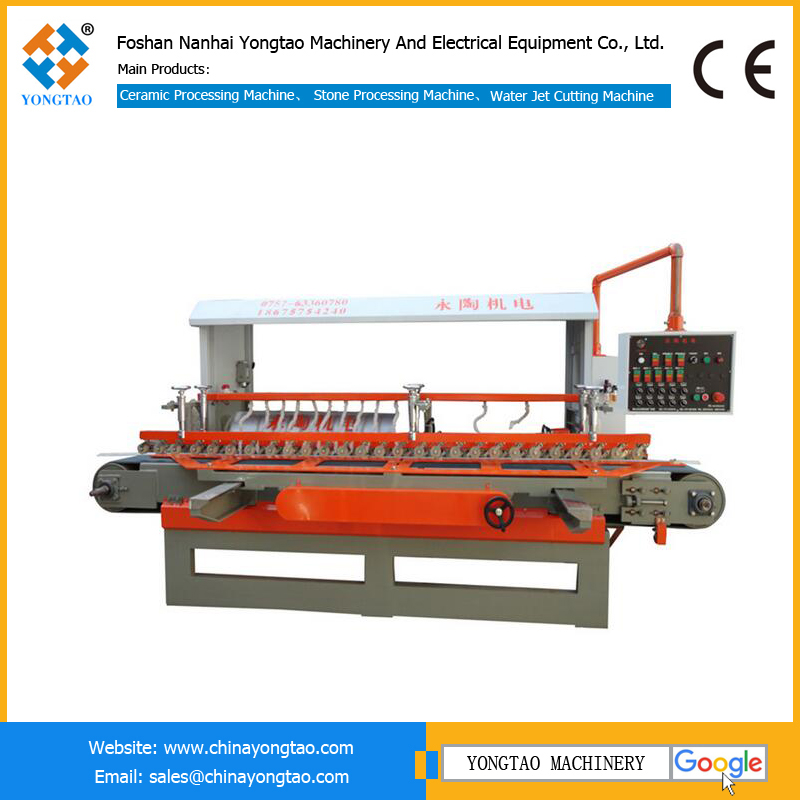

The Yongtao 800mm Stone Chamfering Machine is a high-performance piece of equipment designed specifically for the stone processing industry, particularly for 45-degree chamfering and polishing of marble, granite, and artificial stone. With its reasonable design, simple structure, and excellent performance, this machine effectively enhances production efficiency, ensures product quality, and brings significant economic benefits.
The Yongtao 800mm Stone Chamfering Machine is a high-performance piece of equipment designed specifically for the stone processing industry, particularly for 45-degree chamfering and polishing of marble, granite, and artificial stone. With its reasonable design, simple structure, and excellent performance, this machine effectively enhances production efficiency, ensures product quality, and brings significant economic benefits.

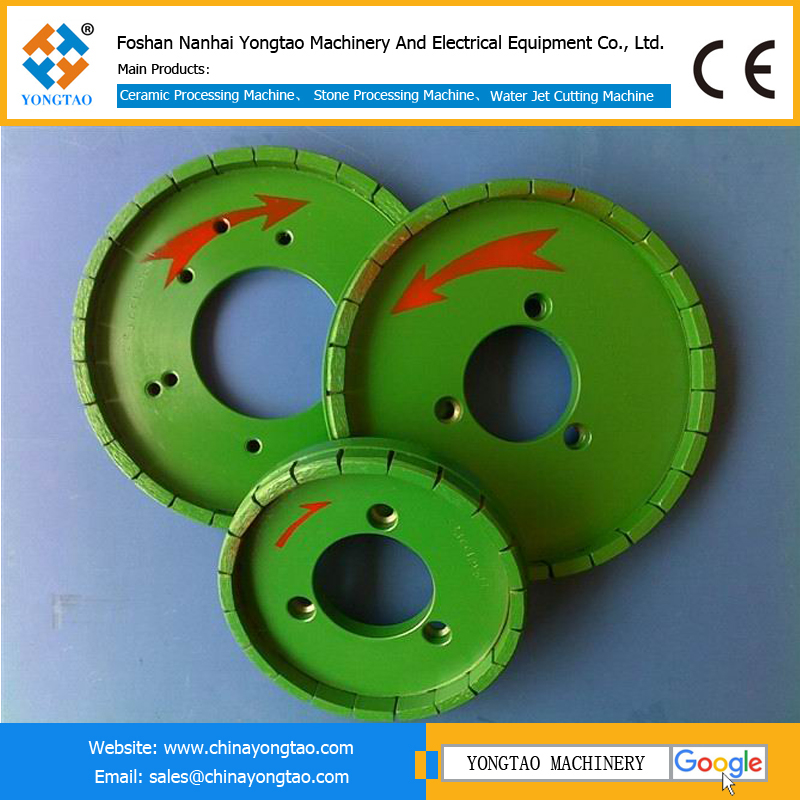

1. Rough Grinding Head: Equipped with a precise rough grinding head that uses a high-quality diamond grinding wheel, this component quickly removes the rough edges of the stone, laying a solid foundation for subsequent chamfering and polishing.
2. Chamfering Heads: The machine features two chamfering heads dedicated to precise 45-degree chamfering of stone. These heads also use diamond grinding wheels, ensuring that the chamfered angles are accurate and smooth.
3. Polishing Heads: The machine is equipped with eight polishing heads, utilizing resin polishing wheels (with a diameter of φ125mm, model Y3) to achieve fine polishing. This ensures a high degree of smoothness and excellent visual appeal of the chamfered stone surface.
1. Applicable Materials: This machine is suitable for processing various types of stone, including natural stones (such as marble and granite) and artificial stones. Its wide applicability makes it highly flexible in the stone processing field.
2. Processing Dimensions: The machine supports a minimum processing width of 80mm and a maximum width of up to 800mm. Whether dealing with small workpieces or large slabs, this machine can easily handle them, meeting diverse stone processing needs.
1. Easy Operation: The machine is designed with simplicity in mind, using a manual adjustment method for the guide ruler. Operators only need to make simple adjustments to start processing. Additionally, to meet specific customer requirements, the machine supports the customization of electric guide rulers, making operation even simpler and more precise.

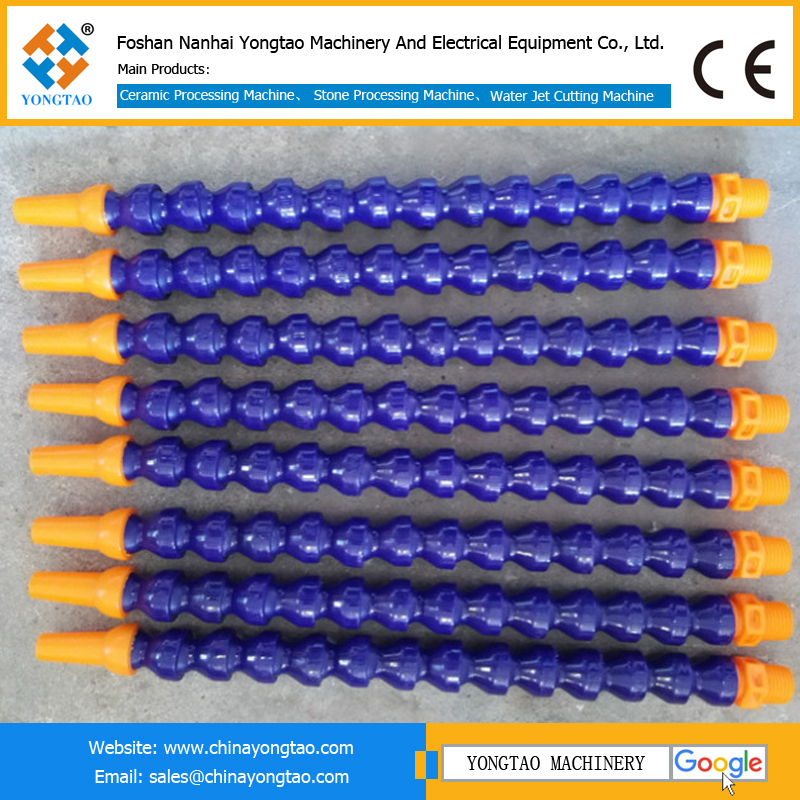

2. Cleaning and Maintenance: Each grinding head position is equipped with water pipes for automatic washing during processing. This design effectively flushes away stone debris and slurry generated during processing, preventing the grinding wheels from clogging, extending their service life, and reducing the cleaning workload for operators.
3. Independent Control System: Each grinding wheel has an independent electrical switch, allowing operators to control the start and stop of each grinding wheel individually according to processing needs. The swing-arm electrical box design not only facilitates operators in monitoring and adjusting the machine's operating status but also allows for real-time modification of processing parameters, greatly enhancing operational flexibility.
4. Processing Workflow Design: The machine adopts a flat plate processing method, where materials are fed from the right side and discharged from the left after processing. The entire process is simple and efficient, requiring two operators: one on the right side to feed the materials into the machine and another on the left side to retrieve the processed materials. This design ensures continuous processing and improves work efficiency.
1. Small Footprint and Compact Structure: The machine occupies a small area and has a compact structure, making it very suitable for workshops with limited space. Additionally, its simple design and affordable price significantly reduce the investment cost for customers.
2. Efficient Production and Easy Maintenance: The machine is not only easy to operate but also easy to maintain, further reducing downtime and increasing production efficiency. Many customers have reported that this machine significantly improves the precision and speed of stone processing, reduces labor costs, and enhances product quality.
3. Customized Services: Yongtao Machinery can customize the machine according to the specific needs of customers, meeting various processing requirements. Whether it's the operation mode, guide ruler design, or other specific functions, adjustments can be made to maximize alignment with the customer's production process and goals.
Overall, the Yongtao 800mm Marble Chamfering Machine, with its superior performance, flexible design, and high cost-effectiveness, has become an ideal choice for many stone processing enterprises. It not only meets the strict requirements for high-quality processing but also helps businesses enhance overall production efficiency and economic benefits, making it a valuable piece of stone processing machinery.
Parameter:
Serial | Name | Unit | Parameter |
1 | Number of triming wheel | unit | 1 |
2 | Motor power of triming wheel | Kw | 3 |
3 | Number of chamfering bottom wheel | unit | 2 |
4 | Motor power of chamfering bottom wheel | Kw | 3 |
5 | Number of polishing bottom wheel | unit | 8 |
6 | Diameter of polishing bottom wheel | mm | 125 |
7 | Motor power of polishing bottom wheel | Kw | 2.2X4 |
8 | Workable width | mm | 80-800 |
9 | Workable thickness | mm | 10-60 |
10 | Workable speed | m/min | 1—5.0 |
11 | Total power | Kw | 20.05 |
12 | Power consumption | Kw/H | 18 |
13 | Water consumption(about) | L/min | 450 |
14 | External size | a×b×h(m) | 4.20×2.00×1.80 |
15 | Weight(about) | T | 3 |
