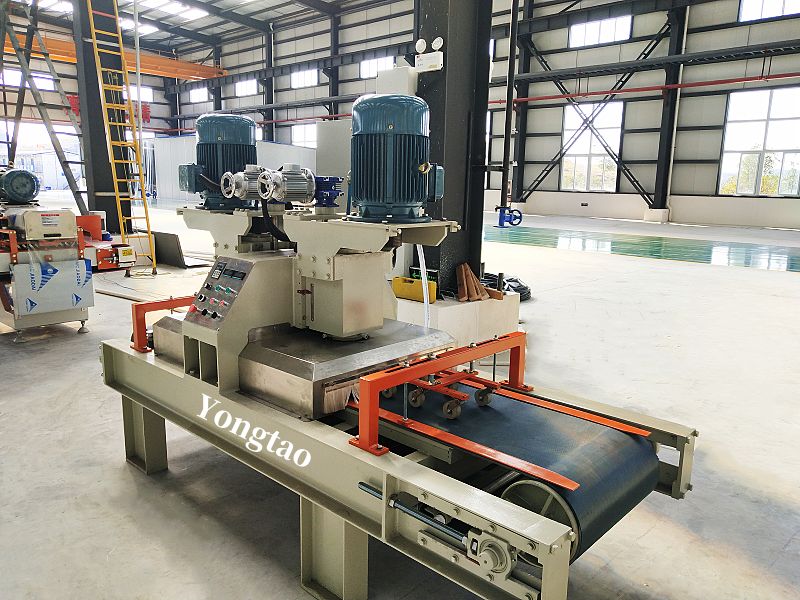

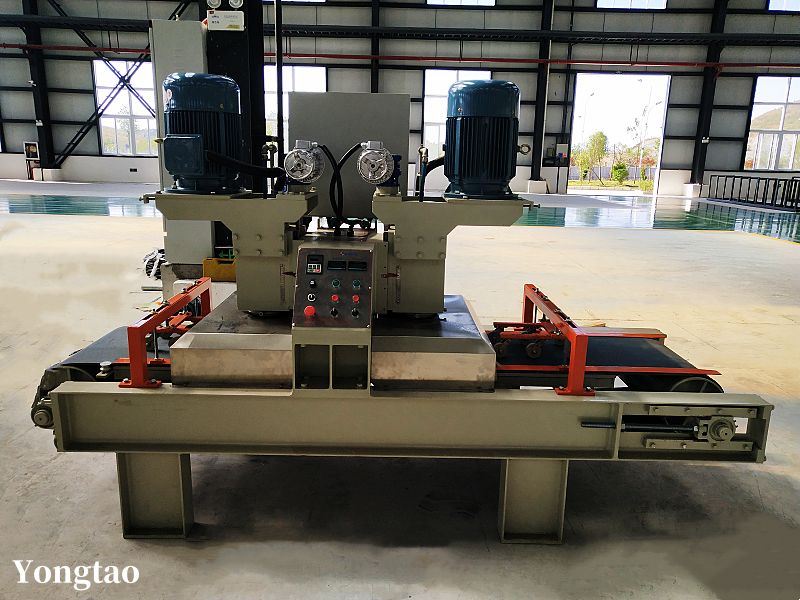

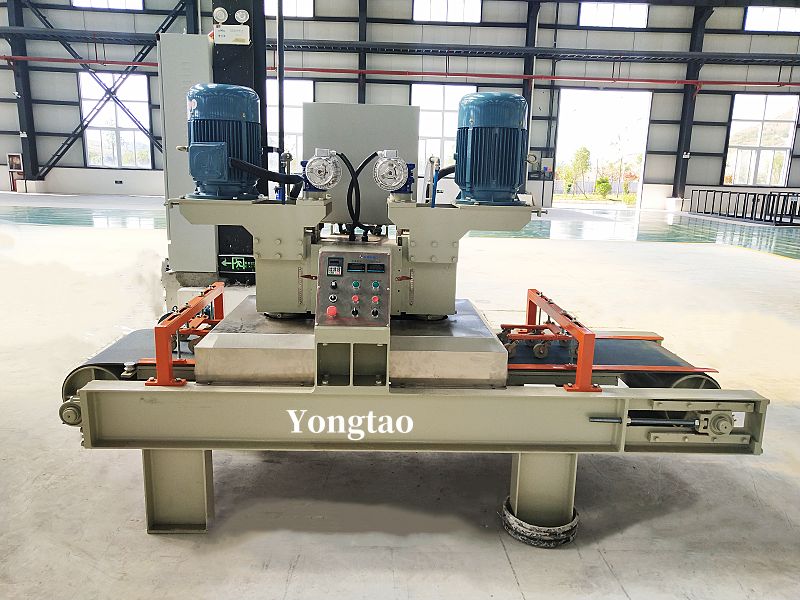

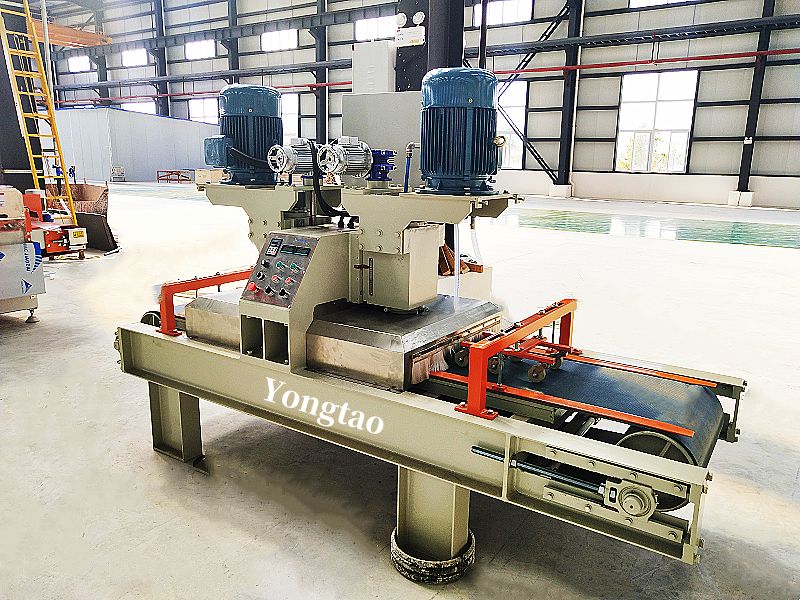

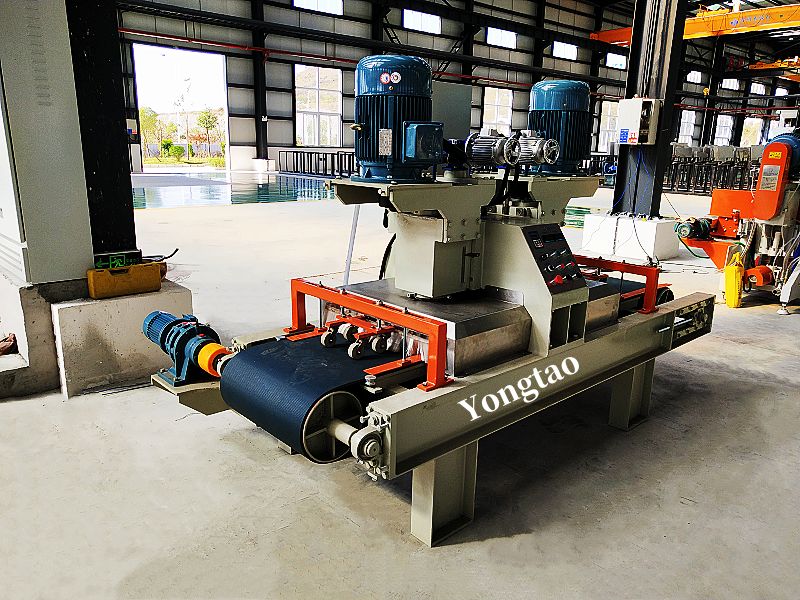

The YSG-400mm Double-Head Stone Calibration Machine is a high-efficiency stone processing machine newly launched by Yongtao Machinery, specifically designed for calibrating ceramic and stone slabs. This machine offers width options of 400mm and 600mm, capable of precisely processing to the required uniform thickness, meeting various processing needs of different customers. This versatile Stone Calibration Machine is essential for achieving optimal thickness in stone materials.
The YSG-400mm Double-Head Stone Calibration Machine is a high-efficiency stone processing machine newly launched by Yongtao Machinery, specifically designed for calibrating ceramic and stone slabs. This machine offers width options of 400mm and 600mm, capable of precisely processing to the required uniform thickness, meeting various processing needs of different customers. This versatile Stone Calibration Machine is essential for achieving optimal thickness in stone materials.
The YSG-400 employs two rotating grinding heads to accurately calibrate the thickness of stone. The first grinding head is responsible for grinding a portion of the thickness, while the second grinding head conducts further detailed processing, ensuring the slabs reach the desired thickness. Notably, the second grinding head is equipped with fine grinding wheels, effectively enhancing the smoothness of the slab surfaces and overall quality, ensuring high standards for the finished product. This makes it a top choice among Marble Calibration Machines in the industry.
This machine features a straightforward design that allows for easy operation. Users simply need to place the slabs on the conveyor belt and adjust the limit devices on both sides to quickly set the processing width. This rapid adjustment function, combined with the stable operating performance of the YSG-400, makes it an indispensable piece of equipment in the stone mosaic processing industry. As a compact Small Stone Calibration Machine, it excels in various processing environments.
The control interface of the YSG-400 is conveniently located in the center of the machine, facilitating easy operation and monitoring of the entire device. The two grinding heads use an electric lifting mode, allowing users to quickly adjust the height, saving time and labor. Additionally, the machine is equipped with pressure rollers at both ends, effectively preventing quality issues caused by slab displacement during processing. This attention to safety is a significant advantage of our Small Marble Calibration Machine.
This machine is designed with space efficiency in mind, featuring wool brushes on the exterior to prevent debris and sludge from entering the grinding discs, ensuring efficient operation. The compact dual-head marble calibration machine not only occupies minimal floor space but is also affordably priced, making it an ideal investment in the stone processing industry. Yongtao Machinery offers a complete set of mosaic processing machines to meet diverse customer processing needs, ensuring competitiveness in the market.
Technical parameters：
Serial number | Name | Parameters |
1 | The number of calibration heads | 2 |
2 | The diameter of sizing heads | 700mm for 600 type, 500mm for 400 type |
3 | The motor power | 11kw × 2 |
4 | The conveyor belt | 700mm for 600 type, 500mm for 400 type |
5 | The processing width | 600mm, 400mm |
6 | The processing thickness | 10 - 50mm |
7 | The processing speed | 0.5 - 2.5 millimeters per minute |
8 | The power consumption | 19kw/h |
9 | The water consumption | 490 liters per minute |
10 | The total power of the whole machine | 26kw |
11 | The machine dimensions | 3000 × 1800 × 1700mm |
12 | The mechanical weight | 2000kg |
The YSG-400mm Double-Head Stone Calibration Machine is a high-efficiency stone processing machine newly launched by Yongtao Machinery, specifically designed for calibrating ceramic and stone slabs. This machine offers width options of 400mm and 600mm, capable of precisely processing to the required uniform thickness, meeting various processing needs of different customers. This versatile Stone Calibration Machine is essential for achieving optimal thickness in stone materials.
The YSG-400 employs two rotating grinding heads to accurately calibrate the thickness of stone. The first grinding head is responsible for grinding a portion of the thickness, while the second grinding head conducts further detailed processing, ensuring the slabs reach the desired thickness. Notably, the second grinding head is equipped with fine grinding wheels, effectively enhancing the smoothness of the slab surfaces and overall quality, ensuring high standards for the finished product. This makes it a top choice among Marble Calibration Machines in the industry.
This machine features a straightforward design that allows for easy operation. Users simply need to place the slabs on the conveyor belt and adjust the limit devices on both sides to quickly set the processing width. This rapid adjustment function, combined with the stable operating performance of the YSG-400, makes it an indispensable piece of equipment in the stone mosaic processing industry. As a compact Small Stone Calibration Machine, it excels in various processing environments.
The control interface of the YSG-400 is conveniently located in the center of the machine, facilitating easy operation and monitoring of the entire device. The two grinding heads use an electric lifting mode, allowing users to quickly adjust the height, saving time and labor. Additionally, the machine is equipped with pressure rollers at both ends, effectively preventing quality issues caused by slab displacement during processing. This attention to safety is a significant advantage of our Small Marble Calibration Machine.
This machine is designed with space efficiency in mind, featuring wool brushes on the exterior to prevent debris and sludge from entering the grinding discs, ensuring efficient operation. The compact dual-head marble calibration machine not only occupies minimal floor space but is also affordably priced, making it an ideal investment in the stone processing industry. Yongtao Machinery offers a complete set of mosaic processing machines to meet diverse customer processing needs, ensuring competitiveness in the market.
Technical parameters：
Serial number | Name | Parameters |
1 | The number of calibration heads | 2 |
2 | The diameter of sizing heads | 700mm for 600 type, 500mm for 400 type |
3 | The motor power | 11kw × 2 |
4 | The conveyor belt | 700mm for 600 type, 500mm for 400 type |
5 | The processing width | 600mm, 400mm |
6 | The processing thickness | 10 - 50mm |
7 | The processing speed | 0.5 - 2.5 millimeters per minute |
8 | The power consumption | 19kw/h |
9 | The water consumption | 490 liters per minute |
10 | The total power of the whole machine | 26kw |
11 | The machine dimensions | 3000 × 1800 × 1700mm |
12 | The mechanical weight | 2000kg |
