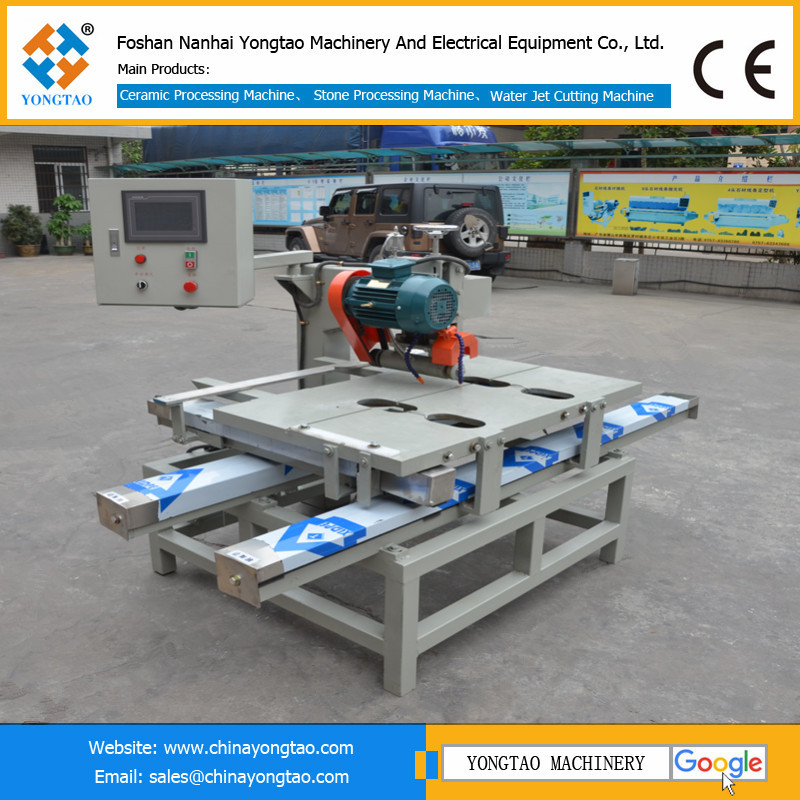

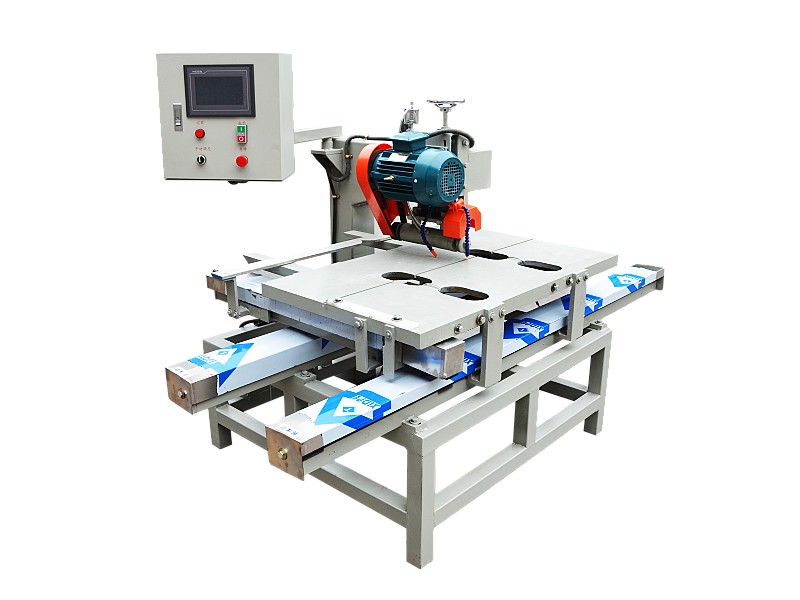

The manual CNC ceramic tile cutting machine builds on the foundation of traditional manual cutting machines by adding a CNC operating system, effectively solving the issues of diverse, complex, and difficult-to-adjust cutting dimensions. The CNC system controls the cutting dimensions, making the machine not only easy and fast to operate but also highly precise in processing.
Yongtao Machinery's latest 2016 model in the manual push series of CNC ceramic tile cutting machines has become an ideal choice for newly established tile processing factories and customers seeking cost-effective cutting equipment, thanks to its high precision, reasonable price, and outstanding cutting performance. This machine adopts an oil-immersed linear guide rail and slider, driven by a stepper motor, achieving processing accuracy comparable to that of automatic CNC cutting machines while being more economically priced than traditional dual-blade CNC cutting machines.
The manual CNC ceramic tile cutting machine builds on the foundation of traditional manual cutting machines by adding a CNC operating system, effectively solving the issues of diverse, complex, and difficult-to-adjust cutting dimensions. The CNC system controls the cutting dimensions, making the machine not only easy and fast to operate but also highly precise in processing. The equipment uses an oil-immersed linear guide rail and slider, combined with a high-precision servo motor drive, further enhancing overall accuracy, allowing users to achieve the same processing effects as an automatic CNC cutting machine at a lower cost.
1、Multi-functional Cutting: This equipment supports multiple cutting functions and can cut various shapes of tiles, such as rectangles, squares, triangles, and diamonds, meeting the processing needs of different customers.
2、Quick and Precise Adjustment: The CNC system adjusts the dimensions within just 3-5 seconds, quickly and precisely, addressing the slow and cumbersome dimension adjustment of traditional manual cutting machines, effectively reducing labor costs and processing time.
3、Easy Operation: The machine has strong stability, and the operating system is simple and easy to use, with a user-friendly interface that any ordinary operator can master easily without needing professional skills.
1、Maximum Processing Size: 1200mm (other specifications can be customized according to customer needs)
2、Cutting Thickness: 6-30mm
3、Cutting Blade Inner Hole: 20mm
4、Power: 3KW
5、Voltage: 380V (customizable 220V motor)
6、Dimensions: 2200x2000x1450mm
7、Weight: 250-300kg
1、Guide Rail System: Uses an oil-immersed precision linear guide rail paired with a slider to ensure high stability and accuracy during the cutting process.
2、Drive System: The motor driving the ruler uses a high-precision servo motor to provide strong power support.
3、Electrical Configuration: The electrical components are selected from Omron or Chint brands to ensure the stability and durability of the equipment.
4、Operating System: The CNC operating system offers two types: touch-screen and button-based, catering to different user operation preferences.
This equipment also supports customization according to customer needs, including special size specifications and different voltage configurations, further enhancing the adaptability and flexibility of the equipment.
