This 12-head marble molding machine is suitable for processing various materials such as ceramics, marble, and granite. With the assistance of programmable microcomputer settings, it can achieve fully automatic production of stone molding lines in various shapes. Compared to traditional manual or semi-mechanical processing methods,

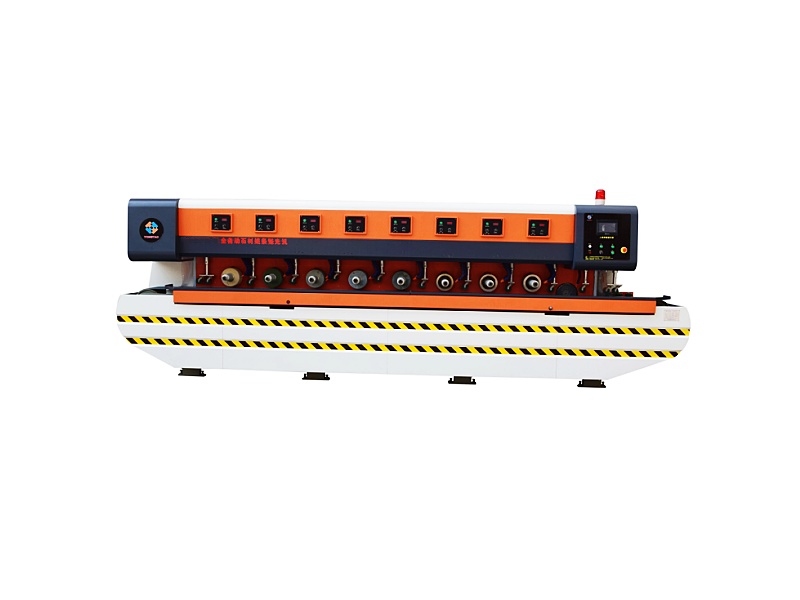

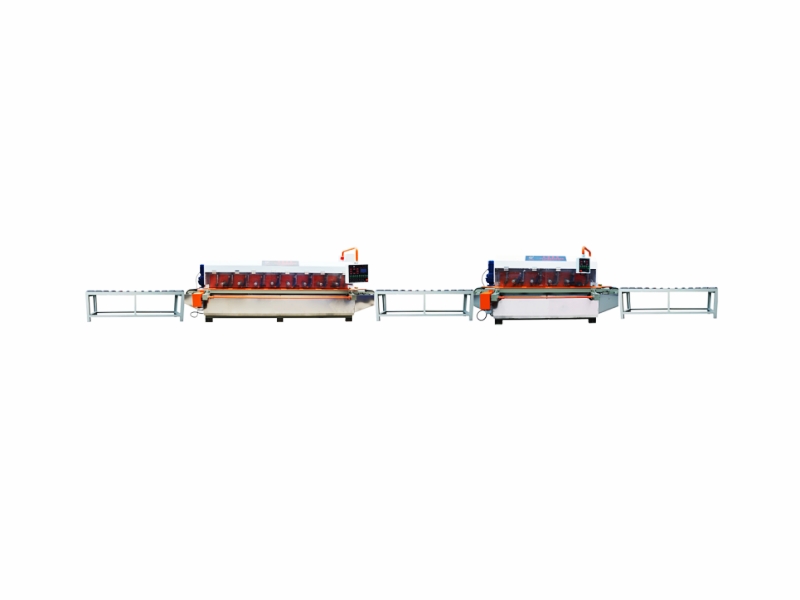

The Yongtao 12-Head Automatic Stone Profiling and Polishing Production Line is the latest ceramic and stone processing machinery developed by our factory, leveraging years of experience in manufacturing stone and ceramic processing machinery. This 12-head marble molding machine is suitable for processing various materials such as ceramics, marble, and granite. With the assistance of programmable microcomputer settings, it can achieve fully automatic production of stone molding lines in various shapes. Compared to traditional manual or semi-mechanical processing methods, this equipment has significantly improved production efficiency, product quality, and processing costs, offering multiple new advantages. Following the success of the tile bullnose polishing machine, this stone moulding machine becomes another powerful tool that Yongtao Ceramic Machinery Factory has introduced for the deep processing industry of ceramics and stone in China.
This equipment fully utilizes the high cutting efficiency of diamond circular saw blades and the fast profiling speed of stone processing, greatly improving production efficiency. Additionally, the equipment supports the free combination of circular saw blades with different outer diameters, allowing flexible adjustment according to the stone profile to be processed.
The front end of the equipment uses combined circular saw blades for preliminary cutting, while the back end completes the fine processing with a combination of coarse and fine profiling grinding wheels. The flexible use of combined circular saw blades not only enhances profiling efficiency but also significantly reduces the grinding load and usage cost of the grinding wheels.
Due to the thinness of the circular saw blades and the small contact area, the equipment exerts less pressure on the stone. During the profiling process, most of the grinding is done by the combined circular saw blades, resulting in a relatively reduced grinding load on the wheels and effectively lowering the overall breakage rate of the equipment.

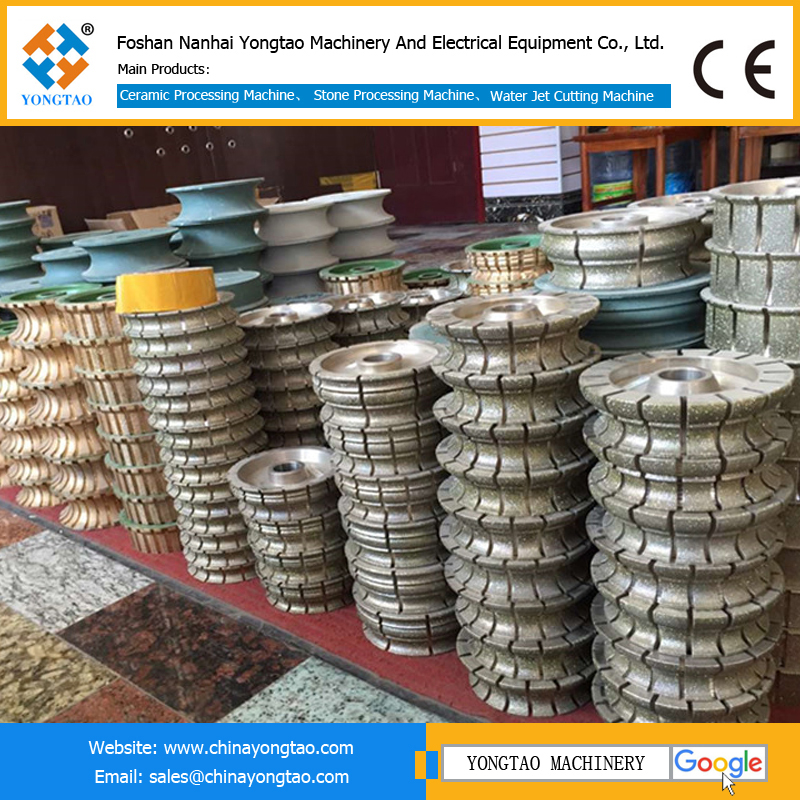

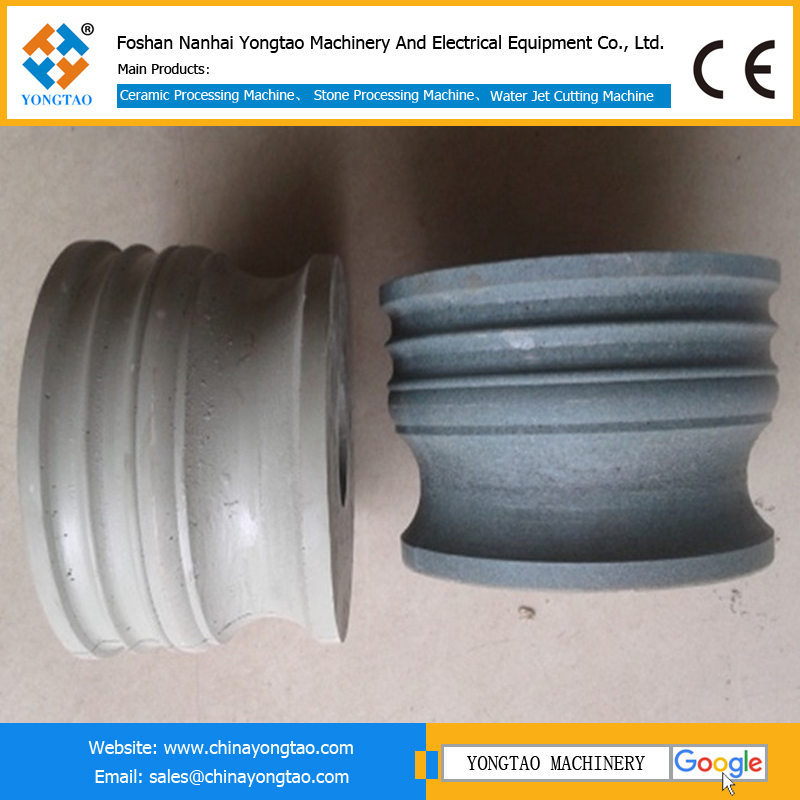

The equipment uses circular saw blades with different outer diameters for rough cutting of the concave and convex curves of the stone profile, followed by final profiling with a coarse and fine electroplated profiling wheel. The advantage of this method is that the circular saw blades can be repeatedly combined for use, effectively saving manufacturing costs and meeting the needs of small-batch production.
This machine combines a human-machine interface system with a CNC system to achieve precise control of each set of grinding wheels. Each set of grinding wheels can independently adjust the pressure on the stone surface according to its coarseness and automatically compensate for wheel wear, ensuring fine and stable polishing processes.
Through this advanced automatic marble molding and polishing production line, Yongtao Ceramic Machinery Factory provides a more efficient and higher-quality production solution for the ceramic and stone deep processing industry, creating greater market competitiveness for users.
Processing speed:processing 200-250m line in 8 hours,depending on the drop of line and thickness of material,the processing speed is different.
4+8 marble molding polishing machine:
Parameter:
Name | unit | parameter |
Number of polishing wheel | unit | 8 |
Number of shape wheel | unit | 4 |
Diameter of polishing wheel | mm | 150-250 |
Bore diameter fo polishing wheel | Mm | 60 |
Diameter of shape wheel | mm | 200 |
Workable width | mm | 70-400 |
Workable thickness | mm | 10-60 |
Workable speed | Mm/min | 500-2000 |
Workable line width | mm | 70-250 |
Water consumption | L/min | 500 |
Total power | kw | 85.6 |
External size | A*b*h | 16m*1.7m*1.8m |
weight | kg | 7000 |
