The Yongtao 6-head small marble polishing machine is a specialized device designed for polishing small-sized stone surfaces, suitable for materials such as marble and artificial stone. Equipped with 6 polishing heads, it utilizes a pneumatic polishing mode, ensuring a stable and efficient polishing process. The machine allows for adjustments to the height of the polishing heads and the grit size of the water grinding discs based on different stone types.

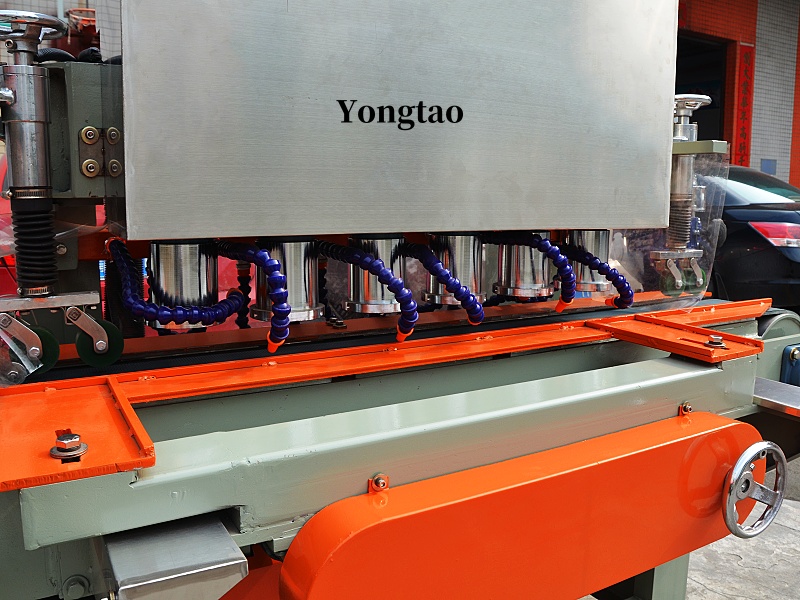

The biggest highlight of the YSU-200 polishing machine is its 6-head design, which allows for manual or automatic adjustment of the polishing heads' vertical movement. The equipment uses a pneumatic polishing mode, making the polishing process more stable and efficient. With the automatic lowering function of the polishing heads, workers only need to simplify their operations, and the machine will automatically complete the polishing work, significantly improving production efficiency. For small stone polishing machine applications that require frequent polishing, this equipment can greatly reduce labor costs.
In terms of functional design, the YSU-200 offers waterproof and durability advantages. The machine is equipped with a stainless steel waterproof cover, preventing water damage that could lead to equipment failure. Additionally, the pressure rollers are made from polyurethane material, offering strong wear resistance and ensuring stable polishing performance over extended use. The manual adjustment of the pressure roller's height allows users to flexibly operate based on different board thicknesses, further enhancing the machine's practicality.

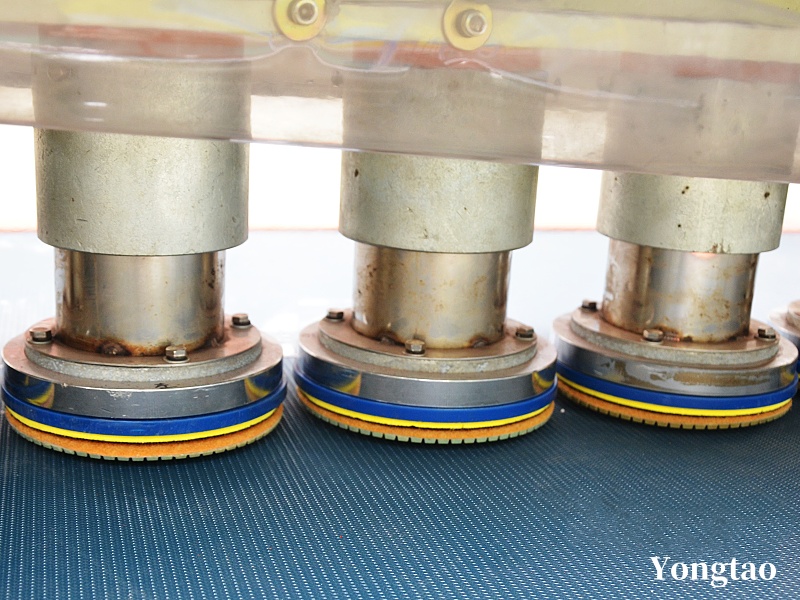

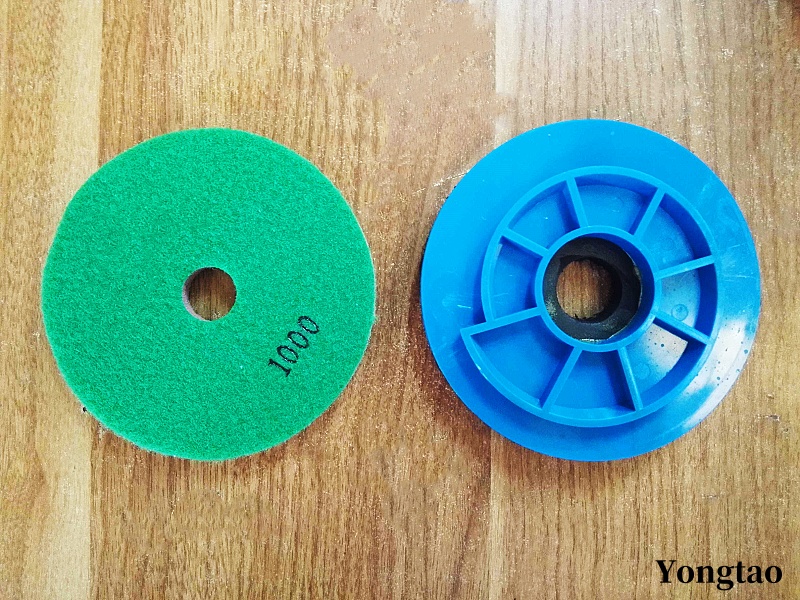

During the polishing process, the equipment supports various specifications of water grinding discs. Depending on the hardness of the material and polishing requirements, different grit numbers can be selected, such as 50#, 100#, 200#, 500#, 1000#, and 2000#. Workers can adjust the ratio of grinding discs used according to the polishing effect, processing speed, and wear rate, ensuring a balance between processing quality and production output. Moreover, the machine can adjust the polishing speed to suit the characteristics of different stones, achieving optimal results for small marble polishing machine needs.
Yongtao Machinery also offers custom services, allowing customers to create unique polishing equipment tailored to their specific requirements. Whether it’s the size of the board, the polishing effect, or special functional requests, Yongtao provides solutions to ensure the equipment delivers peak performance. This makes the YSU-200 not only a highly efficient stone polishing machine but also a personalized surface polishing tool that meets the diverse demands of different enterprises.
Technical parameters:
No. | Name | Parameters |
1 | Number of polishing heads | 6 pieces |
2 | Power of polishing motor | 0.75kw |
3 | Diameter of polishing head | 125mm |
4 | Width of conveyor belt | 200mm |
5 | Processing thickness | 10 - 50mm |
6 | Polishing speed | 0.1 - 3.0 meters/minute |
7 | Control method of baffle | Manual |
8 | Total power of the whole machine | 5.6kw |
9 | Water consumption | 100 liters/minute |
10 | Air consumption | 30 liters/minute |
11 | Machine size | 2.38m * 1.1m * 1.96m |
12 | Weight | Approximately 1500kg |
