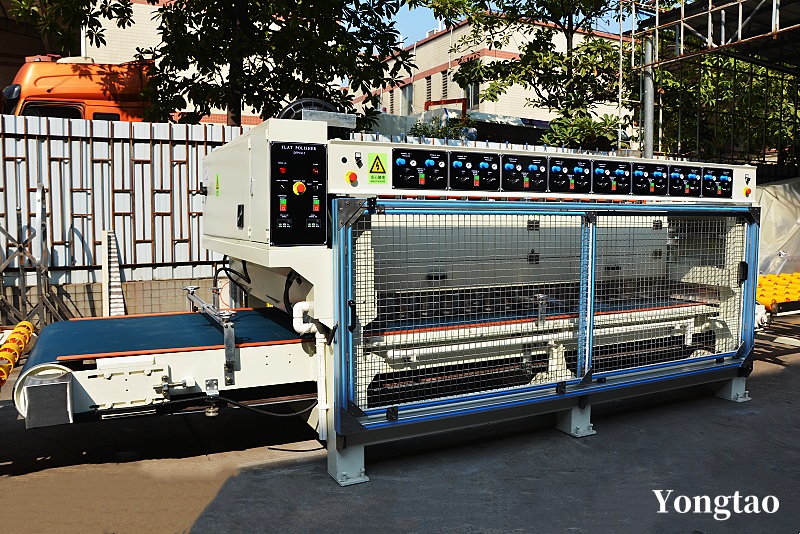

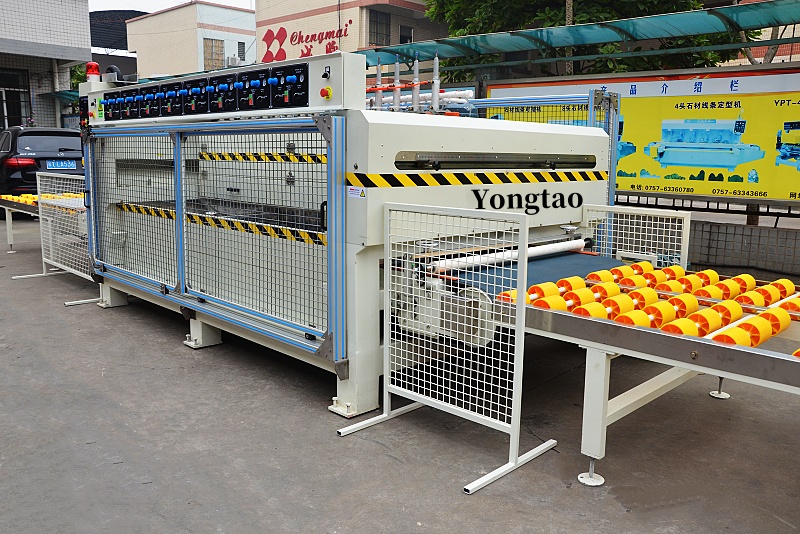

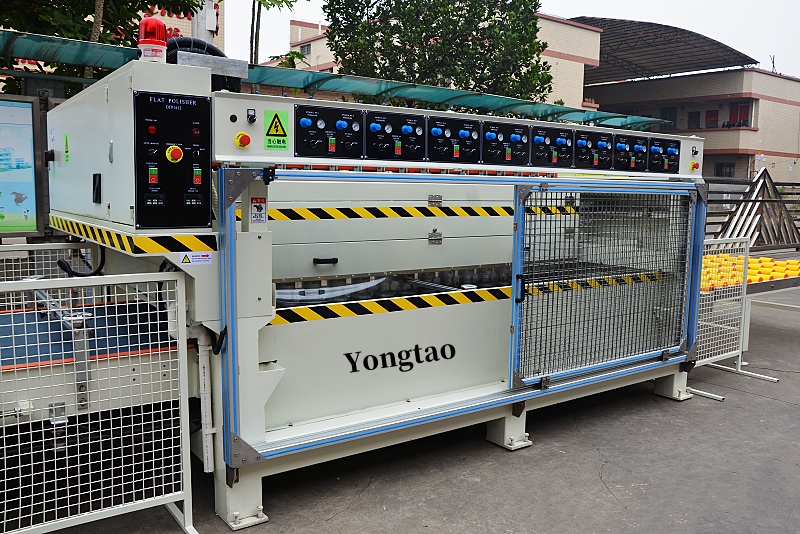

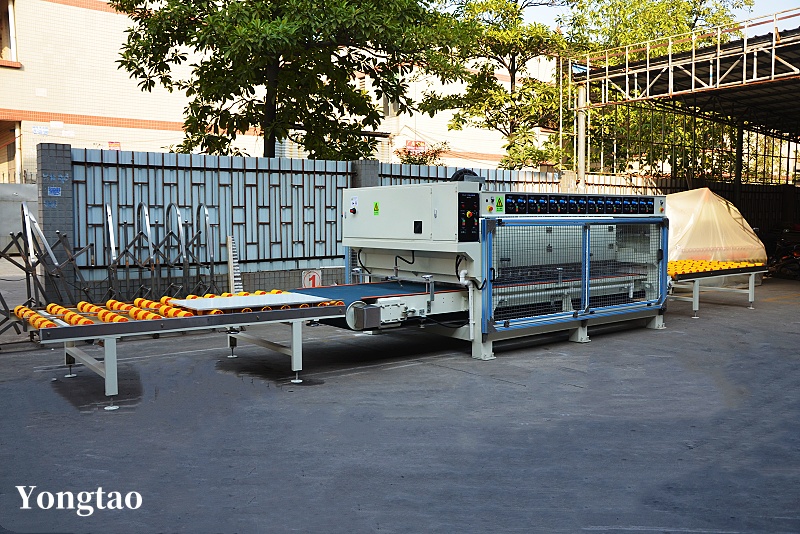

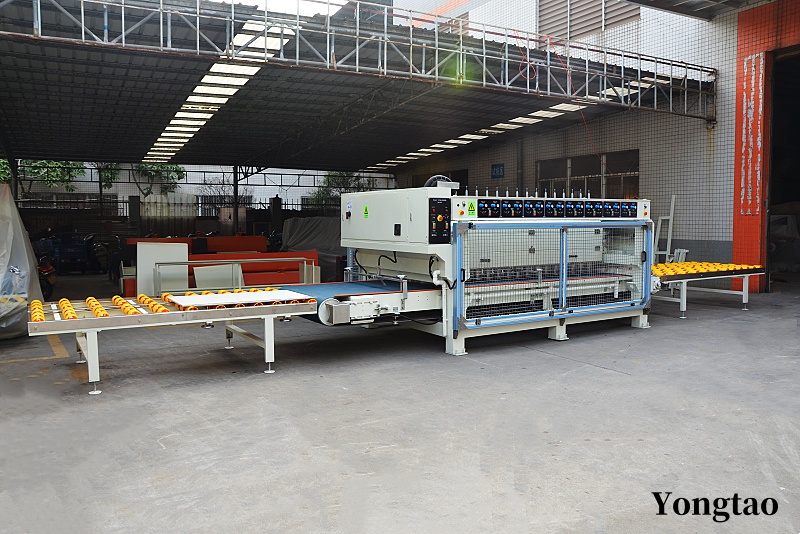

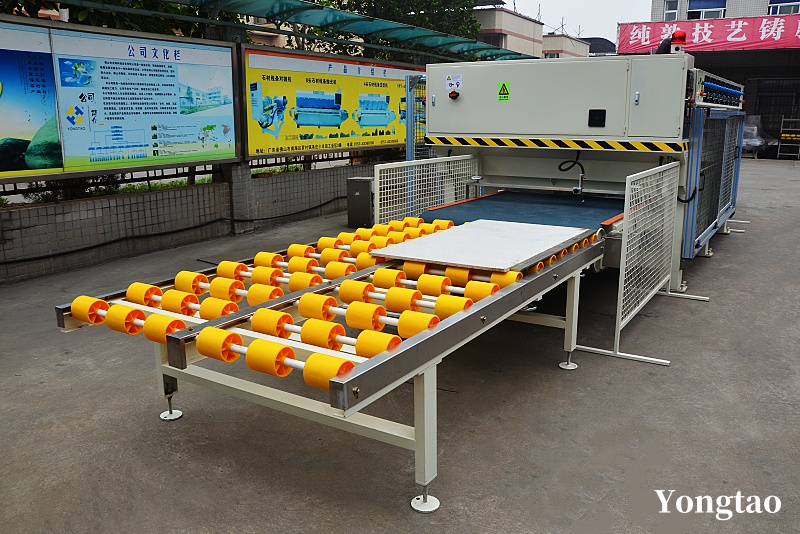

Yongtao Machinery's 16-head stone polishing machine is an efficient stone processing device designed specifically for polishing the surfaces of large-sized slabs. This equipment is suitable for polishing marble, natural stone, and granite, and it is equipped with 16 polishing heads that use water grinding pads of varying grits to achieve exceptional polishing brightness. With its advantages of high efficiency, high output, and ease of operation, it is the ideal choice for stone processing plants looking to polish large-sized slabs.
Yongtao Machinery’s stone polishing machine is a highly efficient stone processing equipment, carefully designed to meet market demands. It is specifically used for precise surface polishing of marble and other stone materials. This machine features high efficiency, high output, and easy operation. It complies with international quality and safety standards, equipped with comprehensive safety protection devices and clear safety markings. Additionally, this stone surface polishing machine supports customization according to customer needs, making it an ideal choice for stone processing plants to polish stone slabs.
The YSU-1200 16-head marble polishing machine is capable of polishing the surfaces of marble, natural stone, and granite. It is also suitable for polishing stone mosaics, aluminum plates, and small-sized stones, with a maximum processing width of 1.2 meters. For larger slabs, users can opt for a larger granite polishing machine to handle bigger sizes.

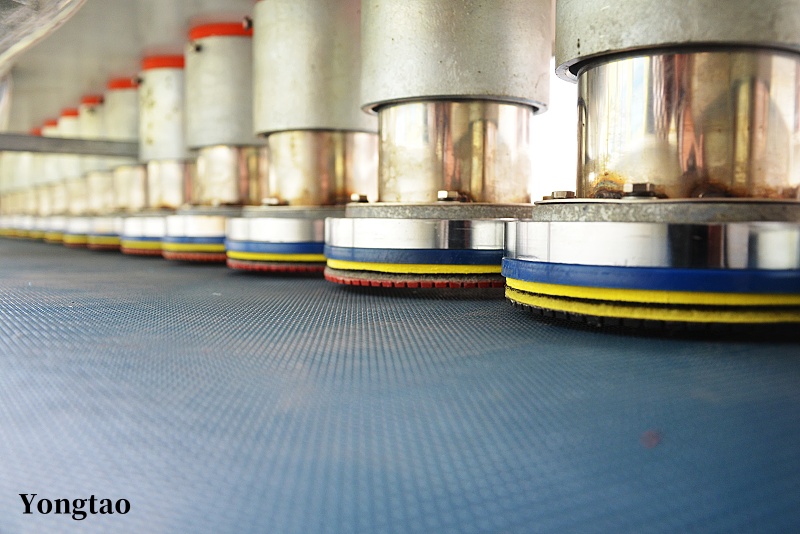

This stone polisher is equipped with 16 polishing heads, each fitted with polishing pads of different grit sizes. Common grits include 50#, 100#, 200#, 300#, 500#, 800#, 1000#, 2000#, 3000#, 5000#, 6000#, and 10000#. Lower grits have coarser particles, suitable for rough grinding, while higher grits have finer particles, perfect for fine polishing, resulting in a smoother and shinier surface. Depending on the material, the polishing heads can be adjusted flexibly to achieve the best polishing effect.
This marble polisher offers multiple model options, including 8-head, 12-head, and 16-head versions. It can accommodate various stone widths, such as 400mm, 600mm, 800mm, 1000mm, and 1200mm, catering to the diverse processing needs of different production lines.

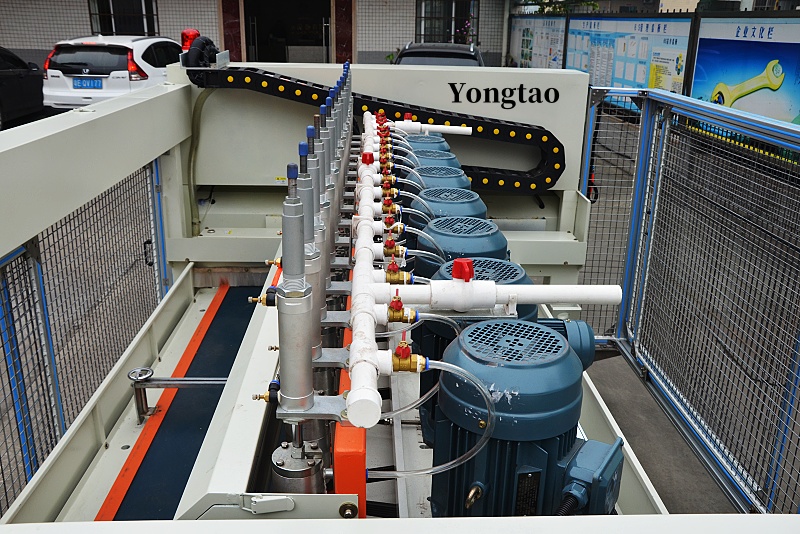

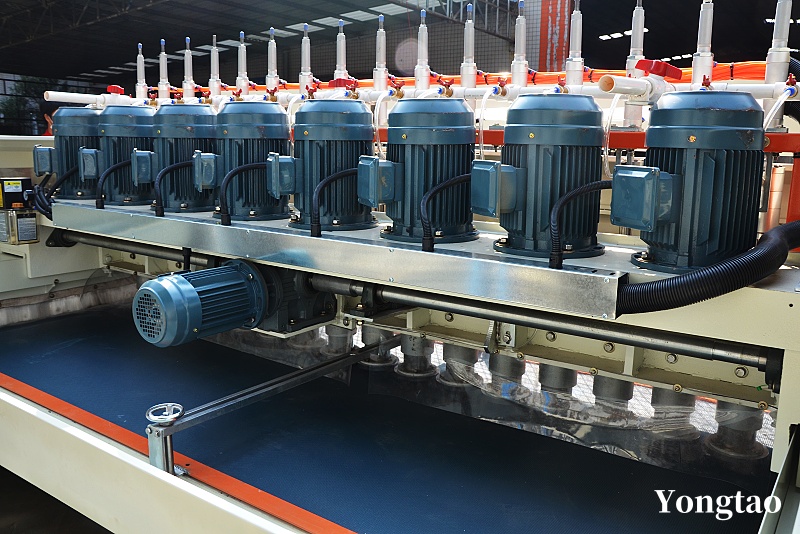

The machine uses one motor to drive two polishing heads, with pneumatic cylinders controlling the lifting and lowering of the heads. The entire machine operates using a back-and-forth swinging motion for polishing. The polishing width can be flexibly set according to the requirements, ensuring uniformity in polishing while enhancing operational efficiency, precision, and overall product quality.
Technical parameters:
No. | Name | Parameters |
1 | Conveyor belt size | 1220mm |
2 | Number of polishing heads | 16 pieces |
3 | Diameter of polishing water millstones | φ150mm |
4 | Number of polishing motors | 8 |
5 | Power of polishing head motor | 4kw |
6 | Power of rotary motor | 3kw |
7 | Power of conveyor belt motor | 3kw |
8 | Polishing speed | 0.5 - 2.5m/min |
9 | Maximum polishing thickness | 50mm |
10 | Maximum polishing width | 1200mm |
11 | Total power of the whole machine | 36.1kw |
12 | Air consumption | 40 liters/min |
13 | Water consumption | 350 liters/min |
14 | Machine size | 5.3m * 2.25m * 1.85m |
15 | Weight | Approximately 4500 kilograms |
