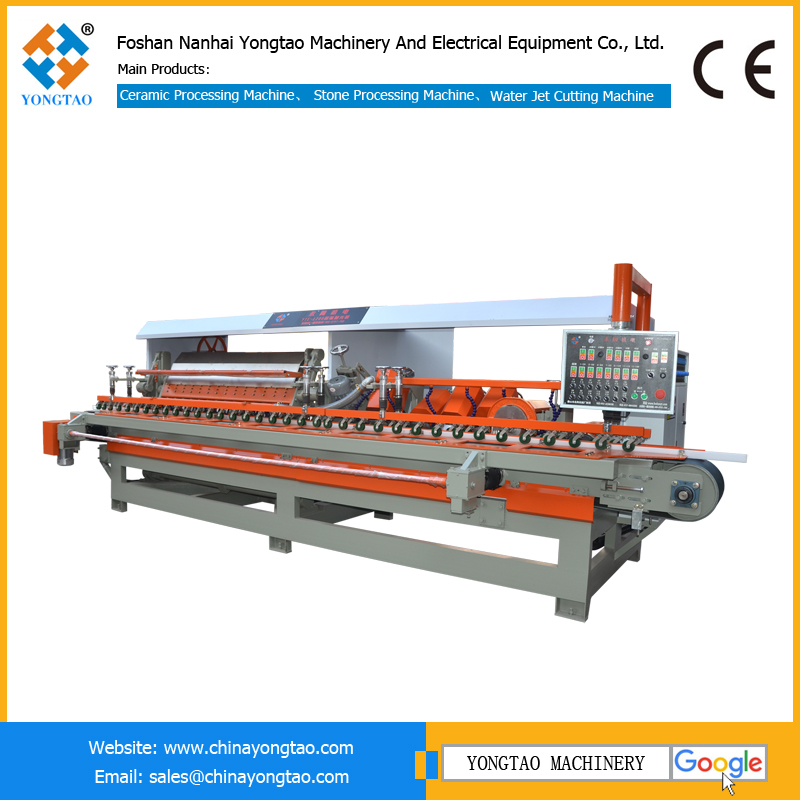

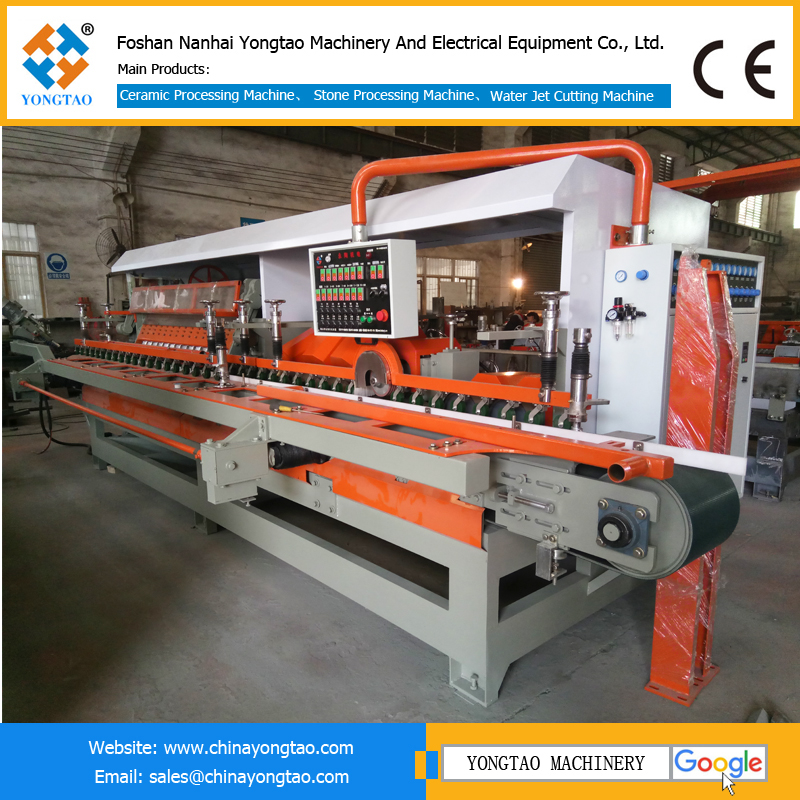

The Yongtao 14-Head Tile Bullnose Polishing Machine is a specialized piece of equipment designed for processing ceramic and stone materials, featuring multiple functions and a wide range of applications. This machine integrates the advantages of various models available in the market and has been improved through technological advancements to create a more refined 1200 tile rounding machine, fully meeting the diverse needs of modern tile processing plants.。
The Yongtao 14-Head Tile Bullnose Polishing Machine is a specialized piece of equipment designed for processing ceramic and stone materials, featuring multiple functions and a wide range of applications. This machine integrates the advantages of various models available in the market and has been improved through technological advancements to create a more refined 1200 tile rounding machine, fully meeting the diverse needs of modern tile processing plants.
The Yongtao 14-Head Arc Polishing Machine is equipped with a rich set of processing functions, capable of easily handling straight edge grinding, 30-degree, 45-degree, and 60-degree chamfering, bottom edge chamfering, grooving (including anti-slip grooves and flat grooves), arc edge grinding, and polishing (including arc polishing and 45-degree polishing). These functions ensure processing accuracy while meeting the diverse needs of different types of tiles, guaranteeing that every product meets high standards.
This equipment is suitable for processing a variety of ceramic and stone products, with typical applications including tile stair steps, baseboards, stair treads, and L-shaped ceramic and stone materials. Its flexible design allows it to meet the processing requirements of various tile edge shapes, making it widely used in home decoration, hotel projects, and other high-demand architectural settings.

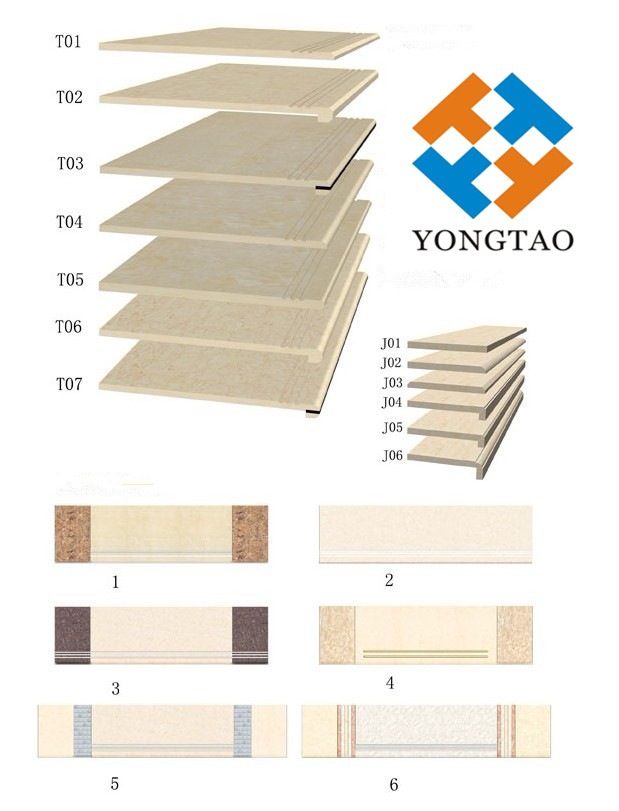

This machine can precisely process tile stair steps, widely used in home and hotel stair renovations, adding both aesthetic appeal and functionality to the space.
The fine processing by the Ceramic tile rounding machine ensures that tile baseboards can perfectly connect the floor and the wall, enhancing the overall decoration effect.
The equipment can create an L-shaped groove on the tile edges, separating the tiles and displaying a three-dimensional visual effect, adding layers to the wall design.

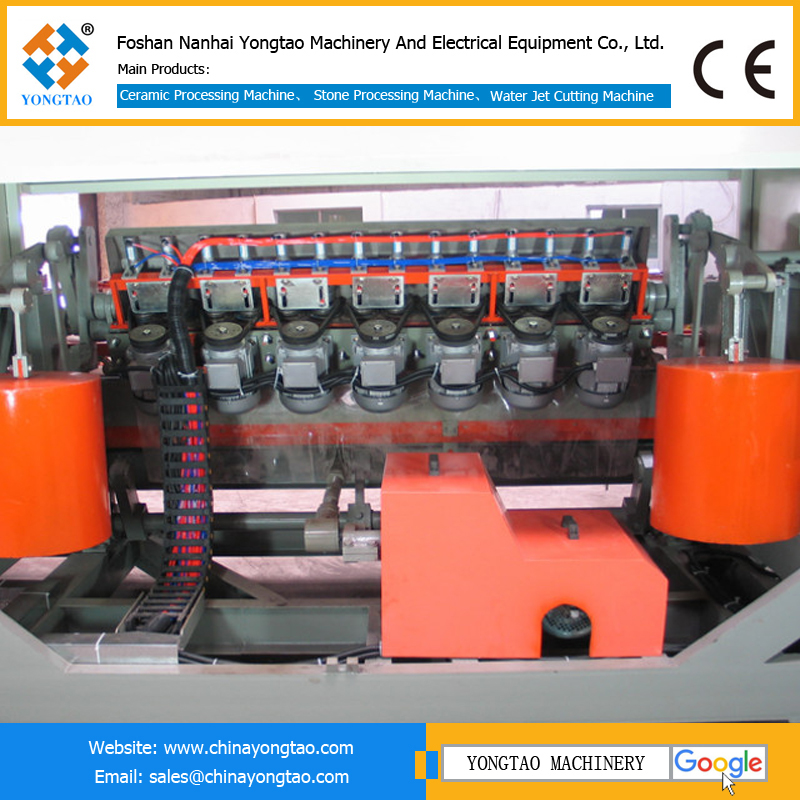

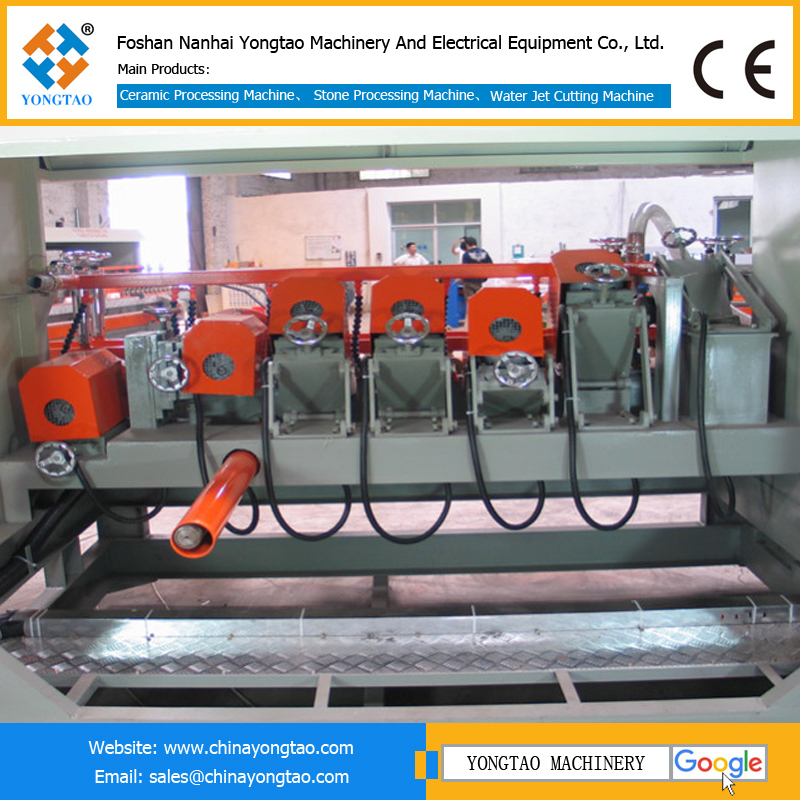

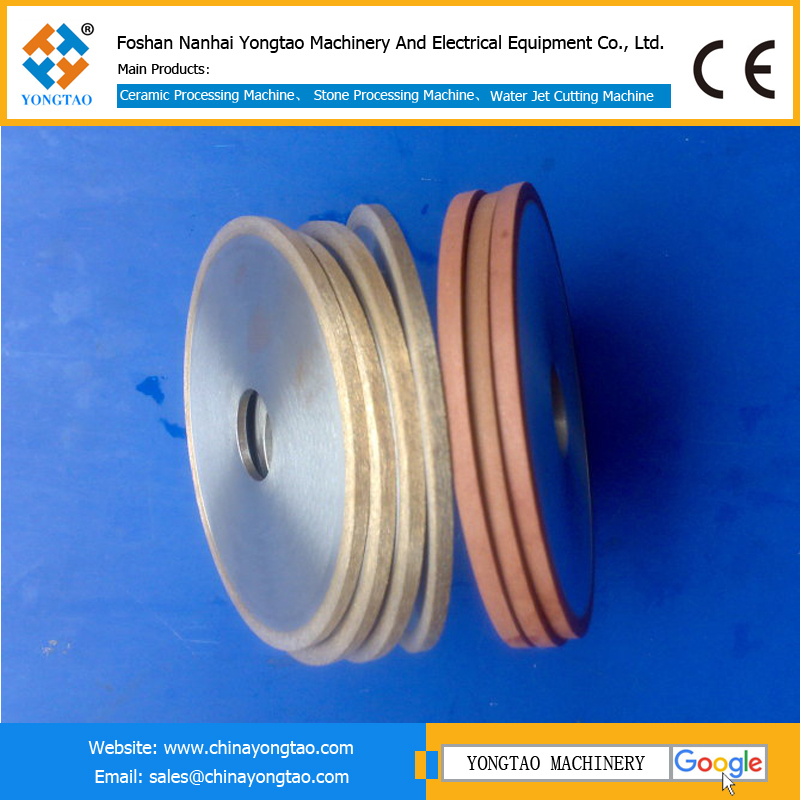

The Yongtao 14-Head Arc Polishing Machine is equipped with high-quality polishing heads and diamond grinding wheels, ensuring processing stability and precision. The polishing head size is 95mm (Y6), and the diamond grinding wheels come in two sizes: 200mm and 150mm. The grooving blade size is 150mm. These component specifications are precisely designed and manufactured, enabling the machine to meet various processing requirements and deliver top-notch results.
The Yongtao 14-Head Ceramic Tile Bullnose Machine is not just a simple replication of existing models but the result of in-depth research into customer needs and innovative design. Through continuous technological upgrades and innovation, Yongtao has provided customers with a high-performance tile processing machine capable of handling various challenges, making it the top choice in the tile processing industry.
With its outstanding performance and wide application range, this 14-Head Tile Rounding Machine fully demonstrates Yongtao Machinery's leading position in the ceramic processing field, helping tile processing enterprises enhance production efficiency and product quality.
Products Technical Parameter:
No. | Part of the machine | Units | Technical parameters |
1 | Width of Conveyor belt | MM | 300 |
2 | Nos.of Polishing head | PCS | 14 |
3 | Diameter of Polishing head | MM | 95 |
4 | Nos. Of Chamfering head | PCS | 6 |
5 | Diameter of Chamfering head | MM | 150/200 |
6 | Nos. Of Squaring wheel | PCS | 1 |
7 | Nos. of Anti-skid slot | PCS | 3/4 |
8 | Diameter of Slotting blade | MM | 150 |
9 | Width of Working | MM | 70--1200 |
10 | Speed of Polishing | M/MIN | 1.5--8 |
11 | Thickness of Processing | MM | 6--20 |
12 | Total Power | KW | 36.7 |
13 | Electricity Consumption | KW/H | 25 |
14 | Air Consumption | L/MIN | 50 |
15 | Machine Size | M | 6.3*2.2*1.8 |
16 | Machine Weight | KG | 5800 |
