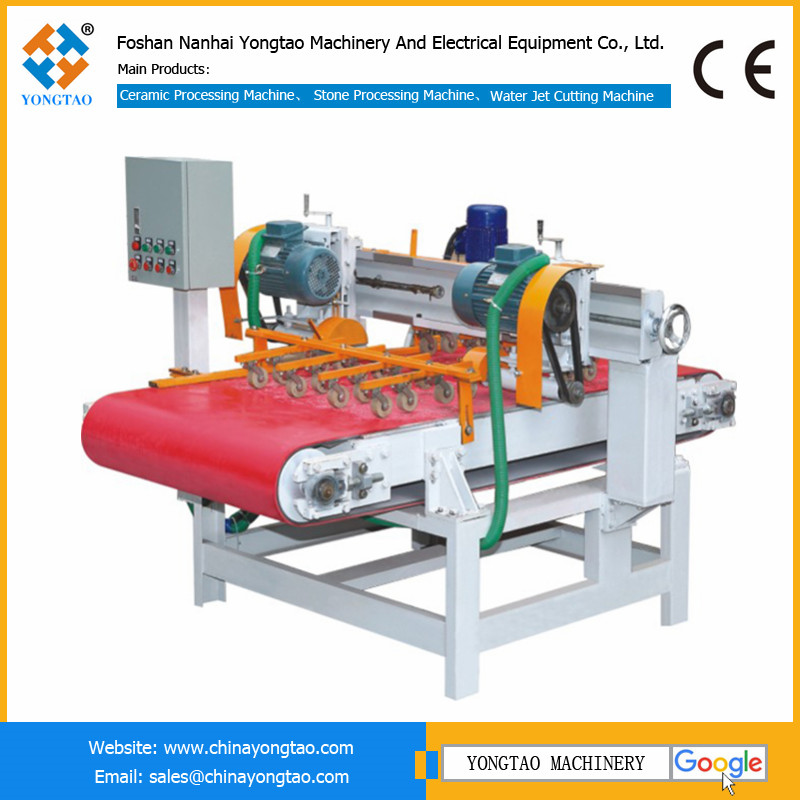

The Double-Sided Tile Cutting Saw is a highly efficient automatic tile cutting machine, custom-made by Yongtao Machinery in Foshan to meet customer demands. This machine is specifically designed to handle irregular or excess edges of tiles. It can precisely trim off the excess parts from one or both sides of a tile, such as cutting a 730x800mm tile down to 700x700mm. With a belt-driven transmission system, you only need to place the tile into the machine, and the automatic cutting process will ensure the final product has accurate dimensions.
The Double-Sided Tile Cutting Saw is a highly efficient automatic tile cutting machine, custom-made by Yongtao Machinery in Foshan to meet customer demands. This machine is specifically designed to handle irregular or excess edges of tiles. It can precisely trim off the excess parts from one or both sides of a tile, such as cutting a 730x800mm tile down to 700x700mm. With a belt-driven transmission system, you only need to place the tile into the machine, and the automatic cutting process will ensure the final product has accurate dimensions.
1. Automated Cutting: The machine achieves fully automatic tile cutting with high precision and speed, and it is easy to operate. It is ideal for mass production, significantly enhancing processing efficiency.
2. Double-Sided Size Adjustment: Users can easily adjust the cutting size on both sides using handwheels on the left and right. The cutting depth can also be manually adjusted. Whether adjusting the thickness or controlling the cutting speed, the speed of the belt drive can be manually adjusted through a stepless speed regulator, ensuring a stable and error-free cutting process.
3. High-Efficiency Tile Pressing Mechanism: The machine is equipped with a row of pressing rollers that firmly hold the tile in place during cutting, preventing any movement and ensuring straight and error-free cuts.
4. Convenient Operation and Maintenance: The control panel has a simple design, allowing users to activate the corresponding function by pressing the start switch for each motor. Additionally, the machine's design is straightforward, making daily maintenance and upkeep easy.
In summary, this Double-Sided Tile Cutting Saw is a top-notch automatic tile cutting machine meticulously developed by Yongtao Machinery to meet specific customer needs. It uses a belt-driven transmission system, supports continuous processing, and is suitable for large-scale tile cutting production. This machine not only improves production efficiency but also significantly reduces the difficulty of operation, making it a valuable asset in the tile processing industry.
Technical Parameters | Specifications |
Cutting Motor Power | 4 kW per unit |
Number of Cutting Heads | 2 |
Processing Size | 800 mm |
Blade Size | (Φ130-150 mm) * 20 mm |
Belt Width | 820 mm |
Machine Dimensions | 2.4 m * 2.0 m * 1.8 m |
Total Power | 9.5 kW |
Weight | 1200 kg |
