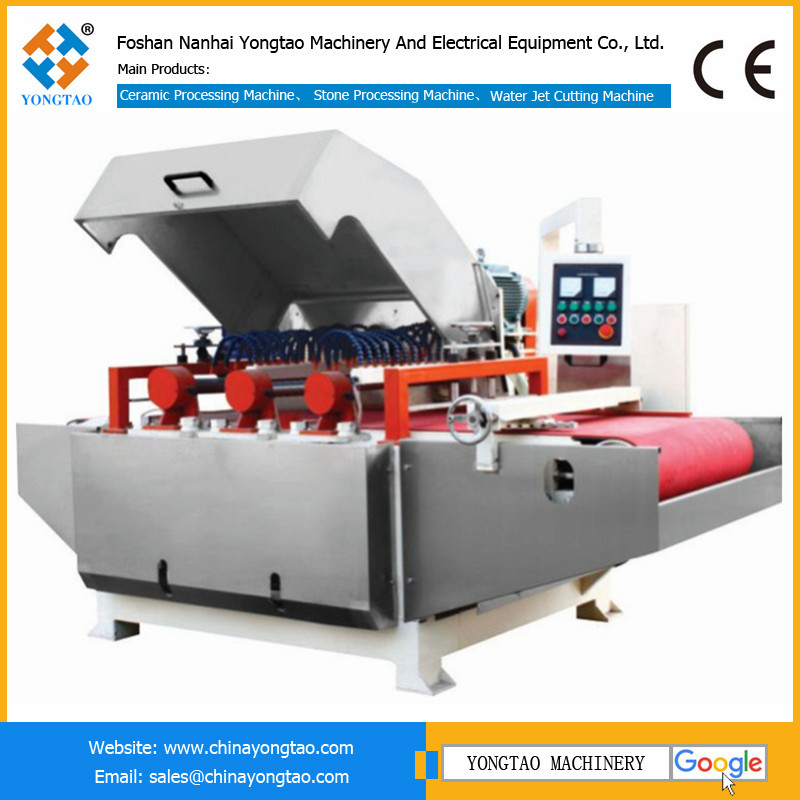

YTQZ-B/3-800 Three Spindle Wet Tile Cutting Machine

The Yongtao YTQZ-B/3-800 Three Spindle Wet Tile Cutting Machine is specifically designed for cutting large-format wall and floor tiles or polished tiles into the desired strip tiles. The processing width range of this equipment is 25-800mm, allowing for continuous cutting of tiles into different widths in a single pass, while also performing chamfering operations simultaneously. It is particularly suitable for grooving on antique tiles and glazed tiles. Additionally, with the use of a special pressure roller, the machine can cut mosaic tiles as small as 15*15mm, meeting diverse processing needs.

Structural Features:

1. High-Precision Transmission System: The active transmission system is composed of a double-layer composite flat belt and a V-shaped guide belt, provided by world-renowned manufacturers, ensuring lasting cutting stability and high precision.

2. Durable Cutting Spindle: The cutting spindle is made of special steel and undergoes special treatment to extend its service life and ensure cutting precision. The secondary spindle bearings are equipped with a circulating water cooling system, effectively reducing temperature and further enhancing the performance of the equipment.

3. Aerospace Metal Manufacturing: The cutting clamps and spacers are made of aerospace metal, characterized by high durability, resistance to deformation, and high precision.

Performance Features:

1. Excellent Cooling System: The spindle box bearings are equipped with a water cooling device, ensuring that the equipment does not overheat during long continuous use, significantly extending the bearing's service life.

2. Precise Transmission: The conveyor belt adopts a V-shaped guide rail design, ensuring high-precision operation of the conveyor belt, avoiding cutting inaccuracies due to transmission errors.

3. Efficient Cutting: Through three cutting processes, fast and low-damage cutting results are ensured. When the spindles are used simultaneously, the cutting speed can be significantly increased without causing damage.

4. Stable Structural Design: The dovetail groove lift dual-support gantry structure ensures stability during the cutting process, greatly reducing the impact of vibration.

Application Advantages:

The YTQZ-B/3-800 Three Spindle Wet Tile Cutter is particularly suitable for dividing large-format wall and floor tiles and stone into the desired strip, square, and diamond-shaped tiles. The processing size of the equipment is 25-800mm, allowing for the cutting of tiles into different widths in one pass, while also performing grooving and chamfering processes simultaneously, thus improving production efficiency and reducing damage.

For large-format tiles (800x800mm), the machine can mount 7-8 blades per spindle, allowing the tiles to be cut into multiple 98x100mm strip tiles in a single pass, making it particularly suitable for producing tile skirting. Additionally, the machine supports installing a chamfering wheel on the first spindle, while the cutting blades are installed on the subsequent two spindles, enabling simultaneous chamfering and cutting, further enhancing processing efficiency. Each cutting spindle can also be used independently.

Equipment Features:

1. Equipped with branded motors and bearings to ensure product quality and durability.

2. Three cutting process design ensures fast cutting speed and low damage rate.

3. The conveyor belt is equipped with a V-shaped guide rail to ensure high-precision transmission.

4. The spindle bearing housing is equipped with a water cooling device, suitable for long continuous cutting, preventing overheating issues.

Technical parameters：
