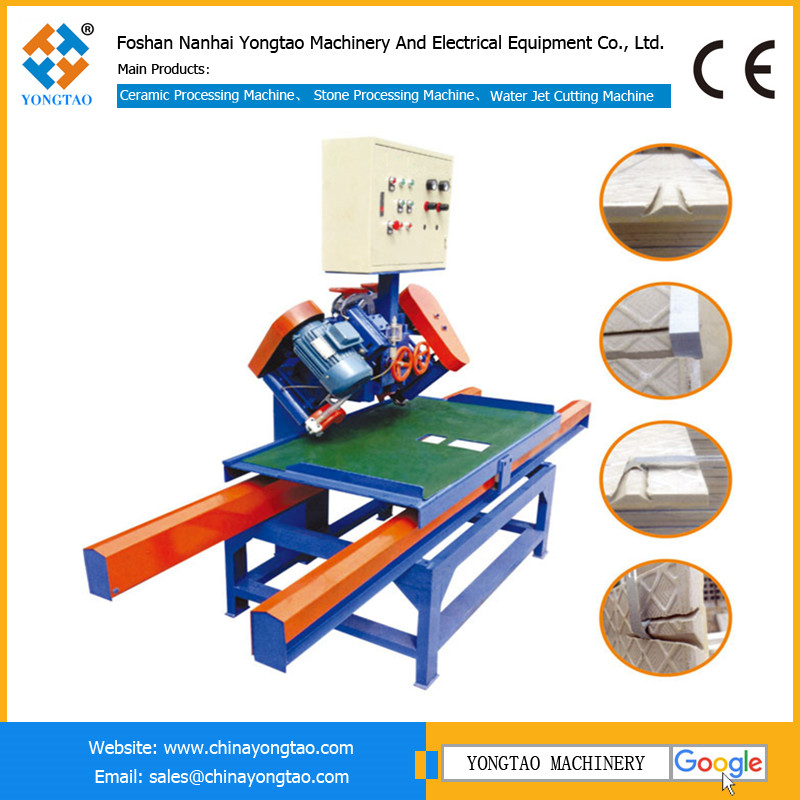

The Ceramic Tile Dry-hung Grooving Machine is a highly efficient and specialized machine designed for creating grooves on ceramic tiles, stone, and ceramic plates. With its advanced technology and precise cutting capabilities, this machine meets the demands of modern tile installation methods, including dry and wet hanging. Below are the key parameters and features of the machine:
Ceramic Tile Dry-hung Grooving Machine
The Ceramic Tile Dry-hung Grooving Machine is a highly efficient and specialized machine designed for creating grooves on ceramic tiles, stone, and ceramic plates. With its advanced technology and precise cutting capabilities, this machine meets the demands of modern tile installation methods, including dry and wet hanging. Below are the key parameters and features of the machine:
Key Parameters:
Motor Power: The machine is equipped with two powerful motors, each rated at 2.2kW, providing a total motor power of 4.4kW. This ensures strong and reliable cutting performance, capable of handling a variety of tile materials.
External Dimensions: The overall size of the machine is 3 meters in length, 1.3 meters in width, and 1.8 meters in height, making it compact and suitable for a wide range of factory settings.
Voltage: The machine operates at a standard industrial voltage of 380V, ensuring compatibility with most factory electrical systems.
Weight: With a total weight of approximately 300kg, the machine is robust and stable during operation, ensuring precise cuts and grooves.
Cutting Capabilities: The machine can cut two grooves in a single stroke, with the width of each groove adjustable according to specific requirements. This flexibility makes it ideal for a variety of tile sizes and installation methods.
Tile Specifications: The machine is designed to process tiles in the following dimensions: 300x600mm, 400x800mm, 500x1000mm, and 600x1200mm, accommodating a wide range of tile formats used in modern construction projects.
Applications:
This machine is versatile in its applications, capable of processing ceramic tiles, stone, and ceramic plates. It is specifically designed for creating grooves required in dry-hung and wet-hung installation methods, enhancing the stability and aesthetics of tile installations.
Construction Methods:
The machine supports various tile installation techniques:
Dry-hung Method: This includes both frameless dry hanging and frame-supported dry hanging, offering flexibility for different architectural designs.
Wet-hung Method: Options for wet installation include wet paste, dot paste, and dot-hung methods, making the machine suitable for a variety of construction requirements.

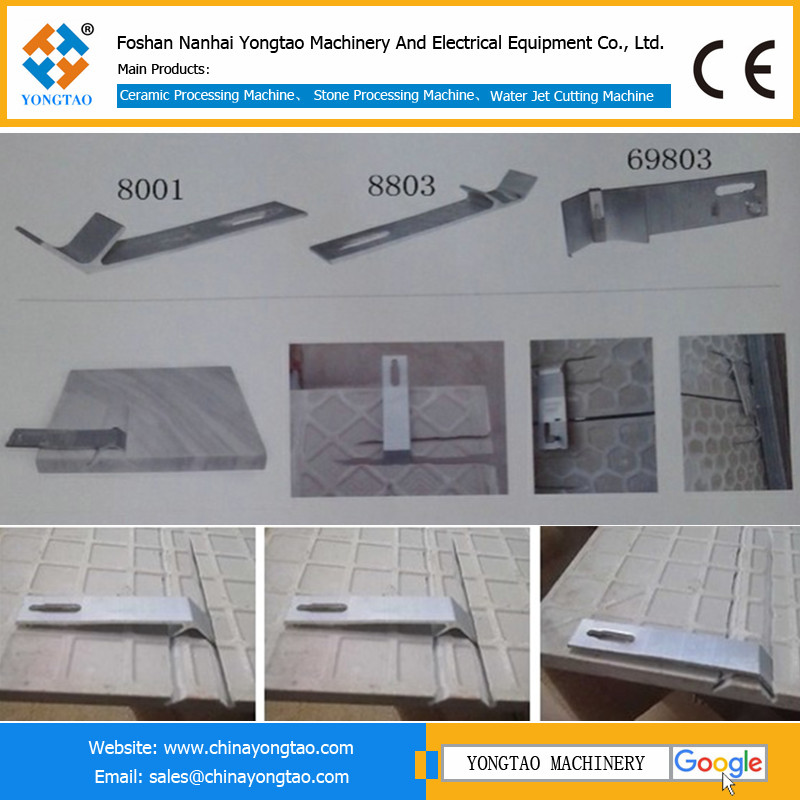

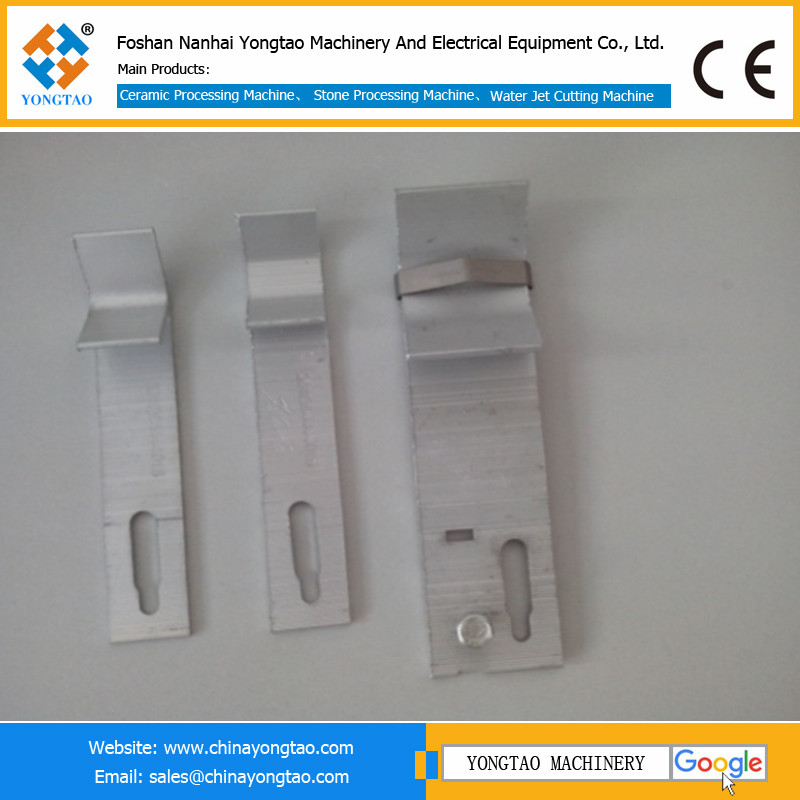

Dry-hung Groove Types:
The machine can create grooves in three different styles to accommodate various installation needs:
8001 Type: Groove width of 27mm.
8803 Type: Groove width of 28mm.
69803 Type: Groove width of 40mm.
Conclusion:
The Ceramic Tile Dry-hung Grooving Machine is an essential tool for tile processing and installation. Its ability to create precise, adjustable grooves on tiles and stone materials, along with its compatibility with both dry and wet installation methods, makes it a valuable asset for construction projects that demand high precision and quality. With its durable design, easy operation, and versatility in tile sizes and groove types, this machine is ideal for professional tile manufacturers and installers.
